Trunk End Trim Removal/Installation

  1. Open the trunk lid.
  2. Remove the trunk mat.
  3. Remove the trunk board.
  4. Remove the fasteners A.

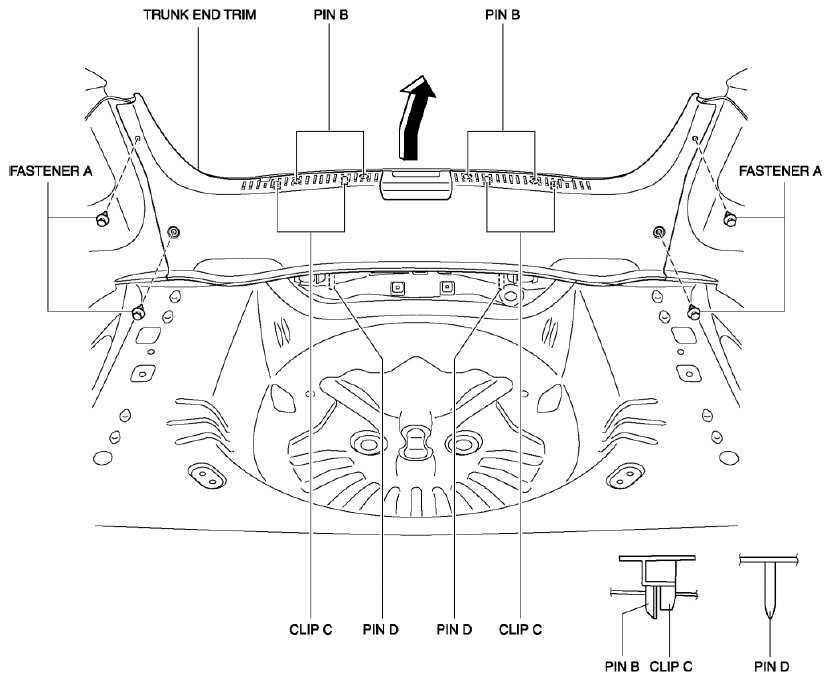

    Fig 1: Trunk End Trim Mounting Components
    G08144756
  5. Pull the trunk end trim in the direction of the arrow shown in the figure and remove it while detaching the pins B, D and clips C.
  6. Install in the reverse order of removal.
