DTC Inspection [BCM]

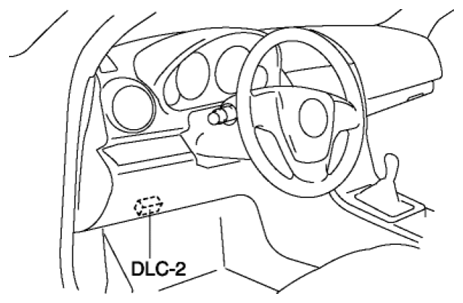

- Connect the M-MDS (IDS) to the DLC-2.
- Verify the following vehicle conditions:
- All the switches are turned off (except the ignition switch).
- All the doors, hood, and liftgate are closed.
- All the doors, and liftgate are unlocked.
- All the seat belts are unbuckled.
- Parking brake lever is pulled.
- After the vehicle is identified, select the following items from the initial screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "BCM".
- Verify the DTC according to the directions on the screen.
- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.
- After completion of repairs, clear all DTCs stored in the BCM. (See CLEARING DTC [BCM] .)
