Clearing DTC [BCM]

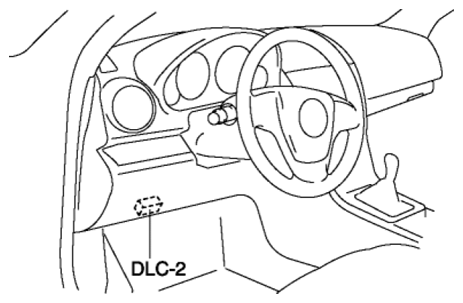

- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initial screen of the IDS.
- Select "Self Test".
- Select "Modules".
- Select "BCM".
- Verify the DTC according to the directions on the screen.
- Press the clear button on the DTC screen to clear the DTC.
- Switch the ignition to OFF.
- Switch the ignition to ON and wait for 5 s or more .
- Perform DTC inspection. (See DTC INSPECTION [BCM] .)
- Verify that no DTCs are displayed.
