Ignition Coil Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable.
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
- Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)

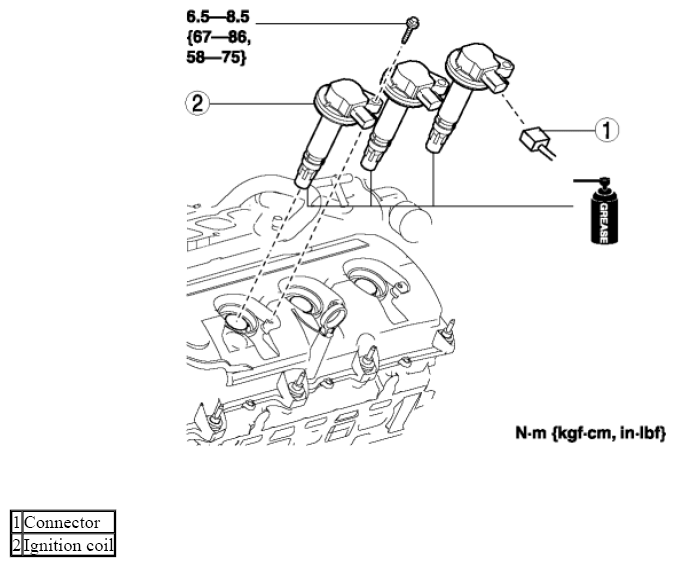

- Remove in the order indicated in the table.CAUTION:
- Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.
- Specified grease: Motorcraft XG-3A
- Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.
- Install in the reverse order of removal.
