Engine Cover Removal/Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Firmly pull the engine cover near the locations shown to disengage the retainers.
  1. Remove the engine cover in the order indicated in the figure.

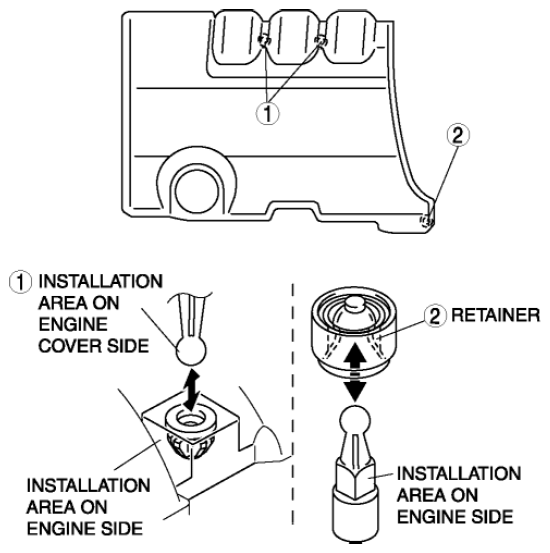

    Fig 1: Identifying Engine Cover Mounting Components
    G08140253
  2. Install in the reverse order of removal.
