Electronic Fuel Pump Relay Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  3. Remove the rear side seat back. (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
  4. Disconnect the electronic fuel pump relay connector.
  5. Remove the electronic fuel pump relay.

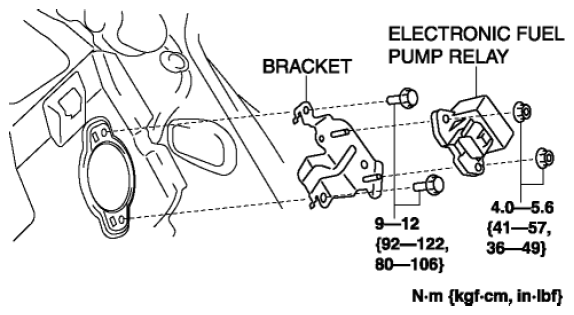

    Fig 1: Identifying Electronic Fuel Pump Relay, Bracket, Bolts And Nuts
    G08140567
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
