Rear Side Seat Back Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolt.

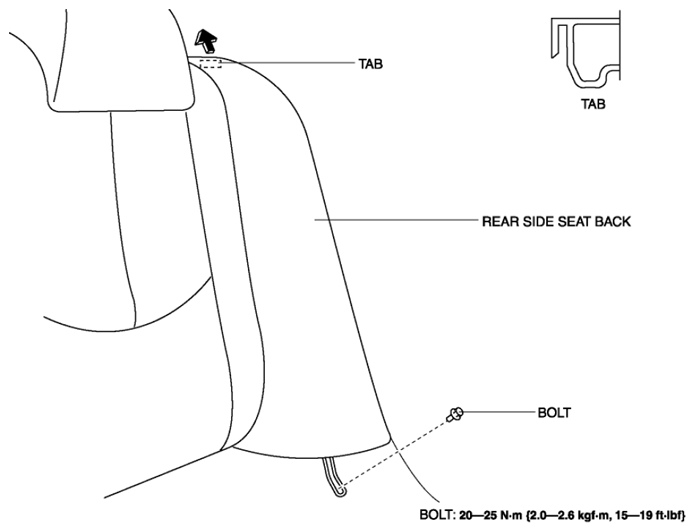

    Fig 1: Identifying Bolt, Rear Side Seat Back And Tab
    G08144448
  3. Remove the rear side seat back, while remove the tab in the indicated of arrow shown in the figure.
  4. Install in the reverse order of removal.
