Section 7 (Symptom Troubleshooting [Engine Control System - MZI 3.7 V6]): Foreword

WARNING: This page is about a different variant/trim than selected.

When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to the following flowchart:
- If a DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE .)
- If no DTC exists and the MIL does not illuminate or flash, diagnose the applicable symptom troubleshooting. (See QUICK DIAGNOSTIC CHART .)

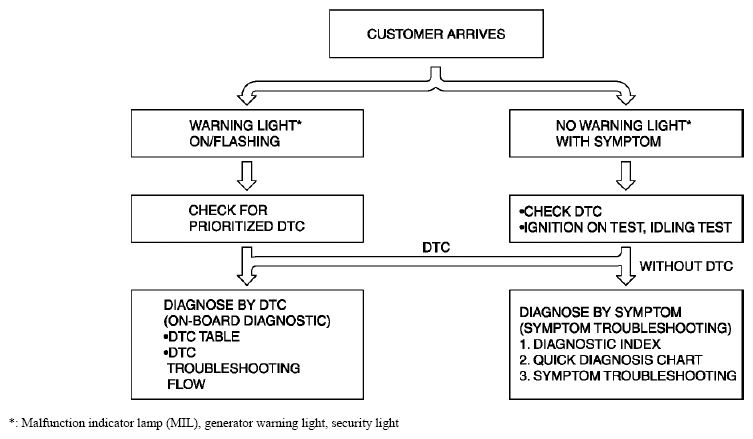

  Fig 1: Diagnosis Flowchart
  Courtesy of MAZDA MOTORS CORP.

*: Malfunction indicator lamp (MIL), generator warning light, security light
