Quick Diagnostic Chart

WARNING: This page is about a different variant/trim than selected.

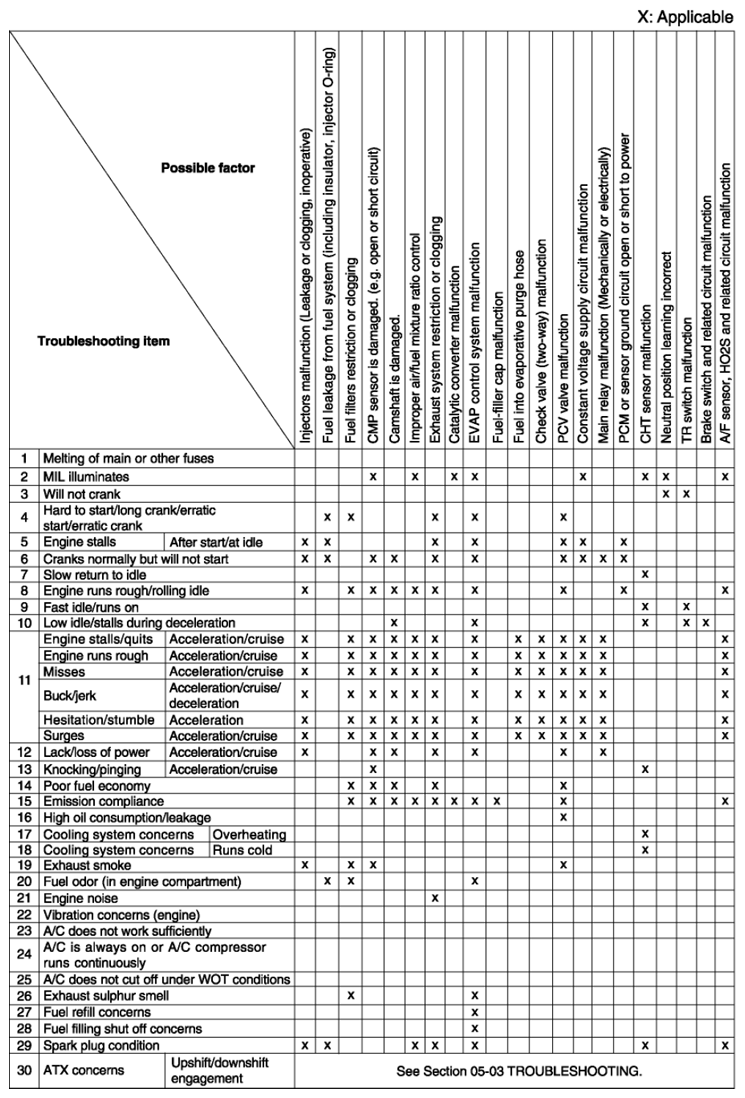

Fig 1: Quick Diagnostic Chart (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

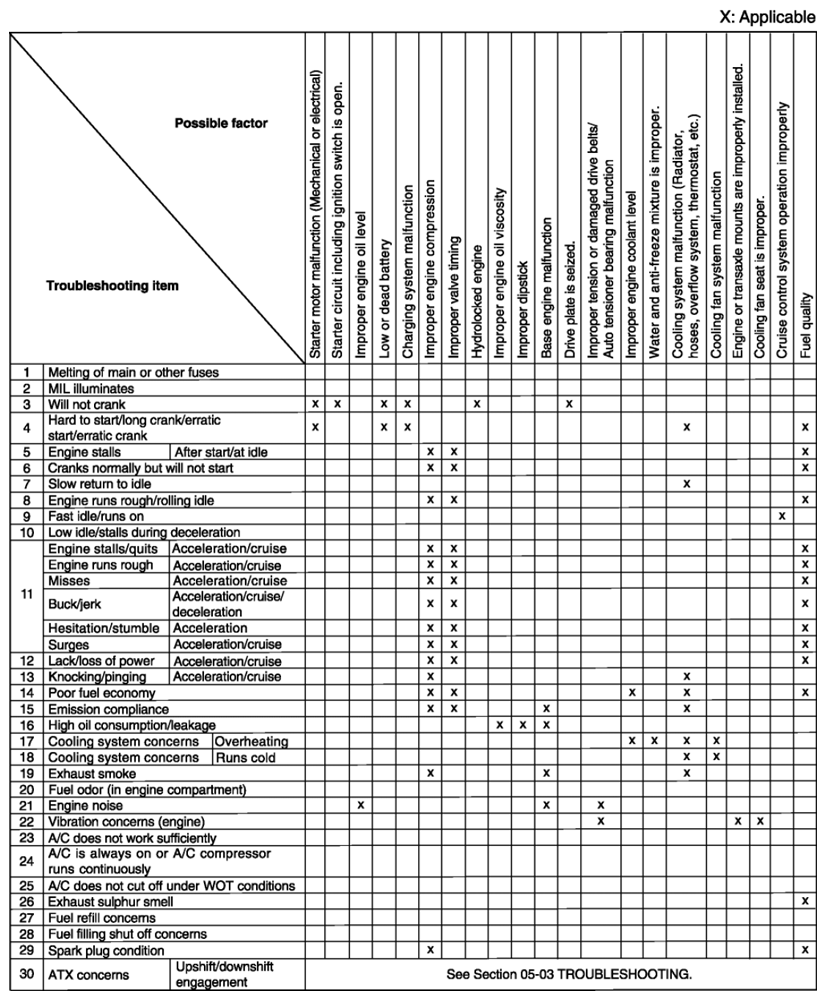

Fig 2: Quick Diagnostic Chart (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

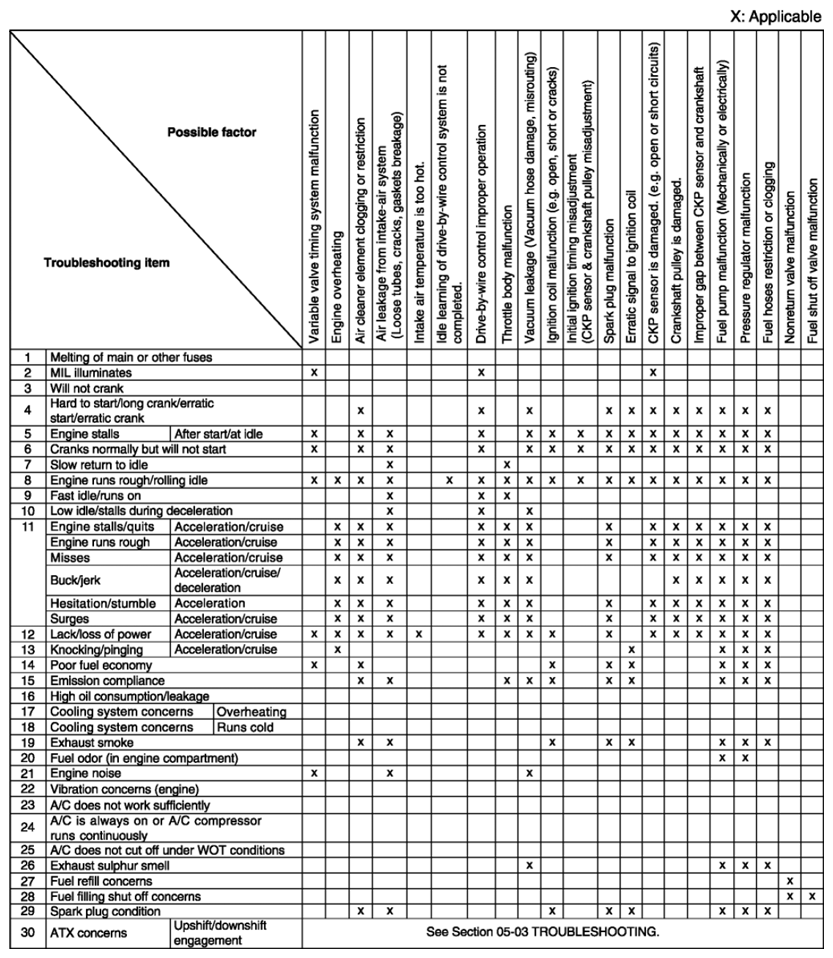

Fig 3: Quick Diagnostic Chart (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

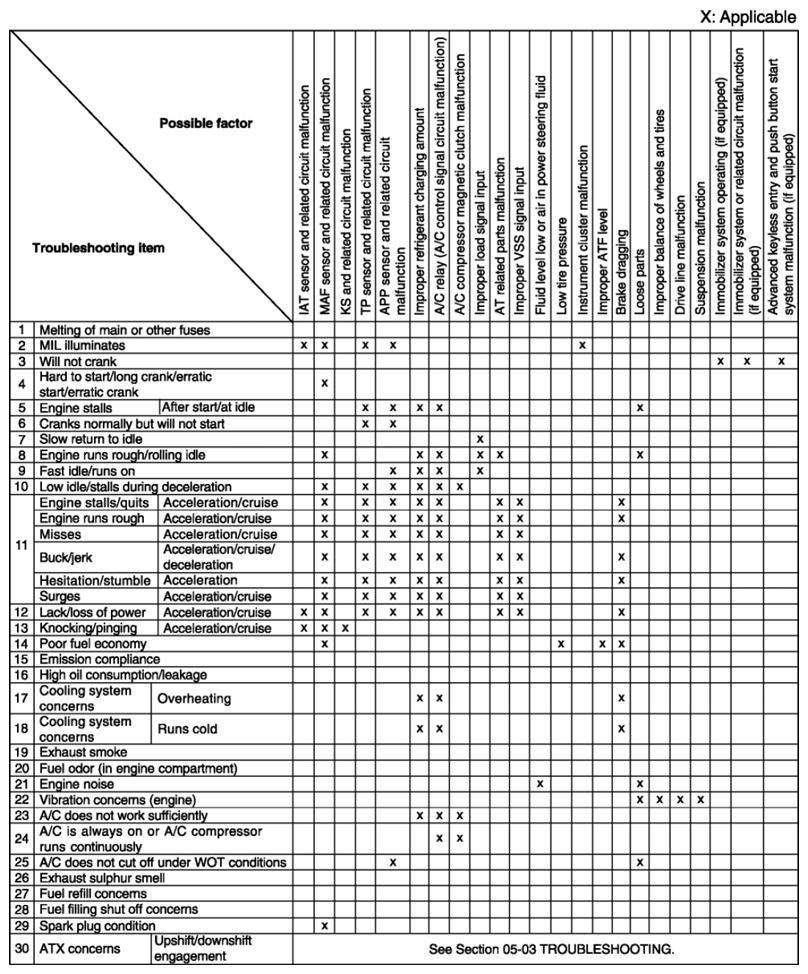

Fig 4: Quick Diagnostic Chart (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
