No.1 Engine Mount Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)
  2. Remove the intermediate shaft bolt, and disconnect the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
  3. Remove the No.1 engine mount, No.1 engine mount bracket and the front crossmember as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZI 3.7 V6] .)

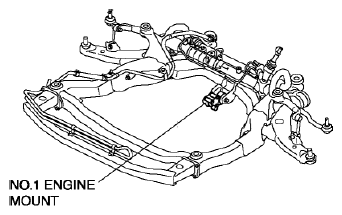

    Fig 1: Identifying No.1 Engine Mount, Bracket And Front Crossmember
    G08140367
