Home >> Mazda >> 2012 >> 6 i Touring >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Transverse Member Removal/Installation

Transverse Member Removal/Installation

  1. Remove the transverse member.

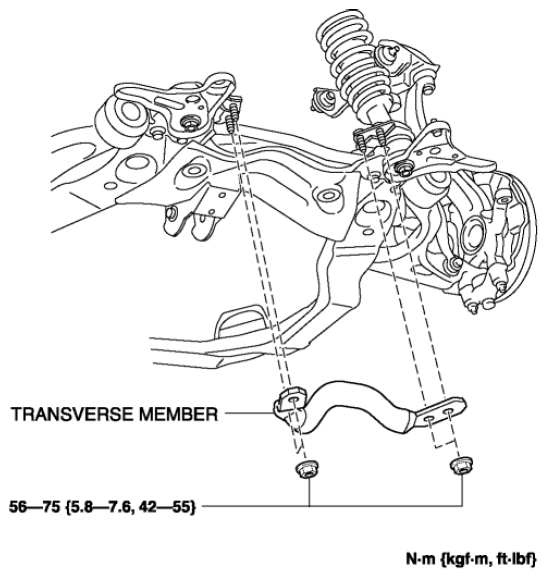

    Fig 1: Transverse Member And Nuts With Torque Specification
    G08140990
  2. Install the transverse member.
