Engine Mount Installation Note

WARNING: This page is about a different variant/trim than selected.

Tighten the No.3 engine mount stud bolts.
NOTE:
- If the No.3 engine mount bracket and the engine are removed, retighten the No.3 engine mount stud bolts.
Fig 1: Identifying No.3 Engine Mount Stud Bolts

Tightening torque
- 16-23 N.m {1.7-2.3 kgf.m, 12-16 ft.lbf}
Secure the engine and the transaxle using an engine jack and attachment as shown.

Fig 2: Securing Engine And Transaxle Using An Engine Jack And Attachment
NOTE:
- Temporarily bolt 1 approximately three thread.

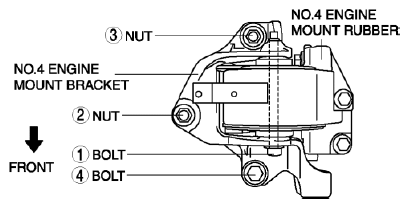

Temporarily tighten the No.4 engine mount bracket bolt and nuts in the order shown in the figure.

Fig 3: Identifying No.4 Engine Mount Bracket Bolt And Nut Tightening Sequence

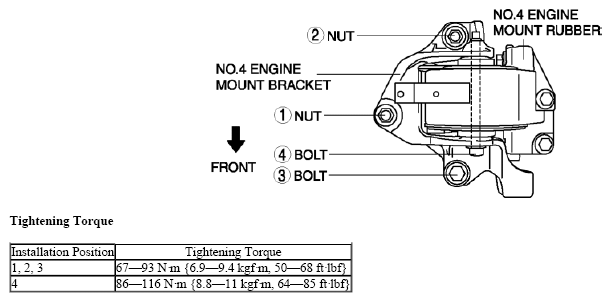

Tighten the No.4 engine mount bracket in the order shown in the figure.

Fig 4: Identifying No.4 Engine Mount Bracket Bolt And Nut Tightening Sequence

TIGHTENING TORQUE

Installation Position	Tightening Torque
1, 2, 3	67-93 N.m {6.9-9.4 kgf.m, 50-68 ft.lbf}
4	86-116 N.m {8.8-11 kgf.m, 64-85 ft.lbf}

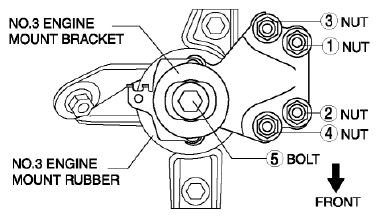

Temporarily tighten the No.3 engine mount bracket bolt and nuts in the order shown in the figure.

Fig 5: Identifying No.3 Engine Mount Bracket Bolt And Nuts Removal Sequence

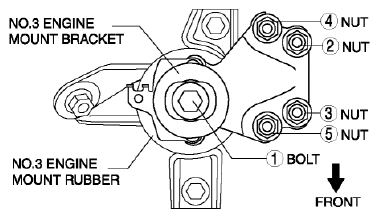

Tighten the No.3 engine mount bracket in the order shown in the figure.

Fig 6: Identifying No.3 Engine Mount Bracket Bolt And Nuts Tightening Sequence

TIGHTENING TORQUE

Installation Position	Tightening Torque
1	75-104 N.m {7.7-10 kgf.m, 56-76 ft.lbf}
2, 3, 4, 5	54-71 N.m {5.6-7.2 kgf.m, 40-52 ft.lbf}

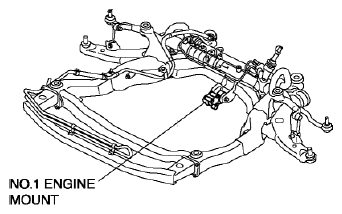

Install the No.1 engine mount, No.1 engine mount bracket and the front crossmember as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZI 3.7 V6] .)

Fig 7: Identifying No.1 Engine Mount, Bracket And Front Crossmember
Install the through bolt A on the front crossmember side until approximately three pitches are showing.
Temporarily tighten the No.1 engine mount bracket bolts in the order of B and C.

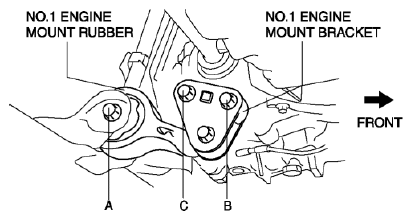

Fig 8: Identifying No.1 Engine Mount Bracket Bolts Tightening Sequence
Tighten the No.1 engine mount bracket bolts in the order of B and C.

Fig 9: Identifying No.1 Engine Mount Bracket Bolts Tightening Sequence

Tightening torque
- 77-103 N.m {7.9-10 kgf.m, 57-75 ft.lbf}
Tighten the No.1 engine mount bolt D.

Fig 10: Identifying No.1 Engine Mount Bolt D

Tightening torque
- 77-103 N.m {7.9-10 kgf.m, 57-75 ft.lbf}
Tighten the bolt A.
Tightening torque
- 94-116 N.m {9.6-11 kgf.m, 70-85 ft.lbf}
Install the intermediate shaft bolt, and disconnect the steering shaft. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
Install the transverse member. (See TRANSVERSE MEMBER REMOVAL/INSTALLATION .)
