Generator and A/C Drive Belt

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When removing the generator and A/C drive belt, perform the procedure with two people, one releasing the belt tension and the other removing the belt.
  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Set the front mudguard (RH) out of the way.
  3. Remove the splash shield (RH).
  4. Disconnect the cooler hose. (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
  5. Set a breaker bar on the center of the tensioner pulley as shown.

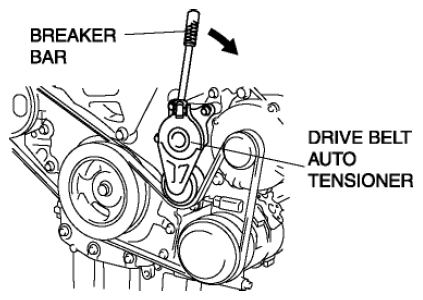

    Fig 1: Drive Belt Auto Tensioner And Breaker Bar
    G08140255
  6. Using the breaker bar, turn the center of the tensioner pulley clockwise to release the tension on the generator and A/C drive belt.
  7. Remove the generator and A/C drive belt.
  8. Install the generator and A/C drive belt.
    NOTE:
    • When the generator and A/C drive belt is replaced with a new one, the drive belt auto tensioner indicator mark is aligned with the nominal belt length mark.
  9. Verify that the drive belt auto tensioner indicator mark is within the maximum and minimum belt length. (See DRIVE BELT INSPECTION .)

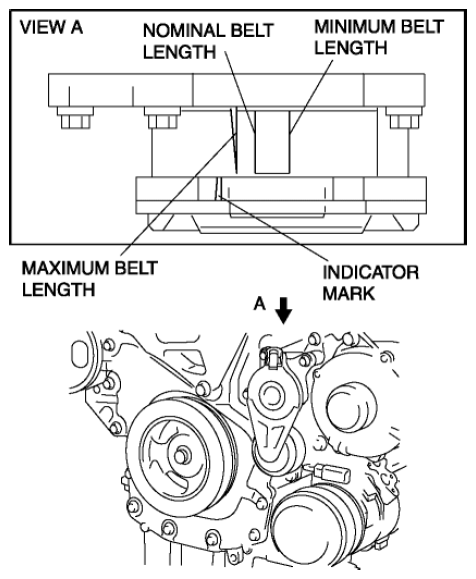

    Fig 2: Identifying Drive Belt Auto Tensioner Indicator Mark
    G08140256
    • If the drive belt auto tensioner indicator mark is not within the limit, replace the generator and A/C drive belt.
  10. Install the cooler hose.
  11. Install the splash shield (RH).
  12. Install the front mudguard (RH).
  13. Install the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
