Resistance Inspection
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
- Disconnect the throttle body connector.

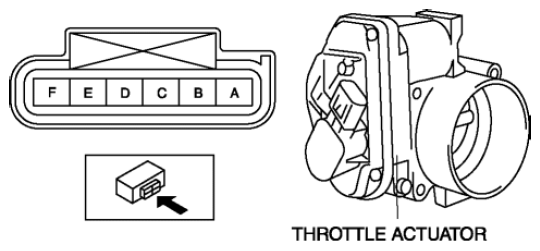

- Measure the resistance between throttle body terminals A and B.
Throttle actuator resistance
- 1-900 ohms [20°C {68 °F}]
- If not as specified, replace the throttle body. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
