Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- When the engine and intake-air system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the intake-air system.
- Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
- Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure".
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
- Disconnect the wiring harness.

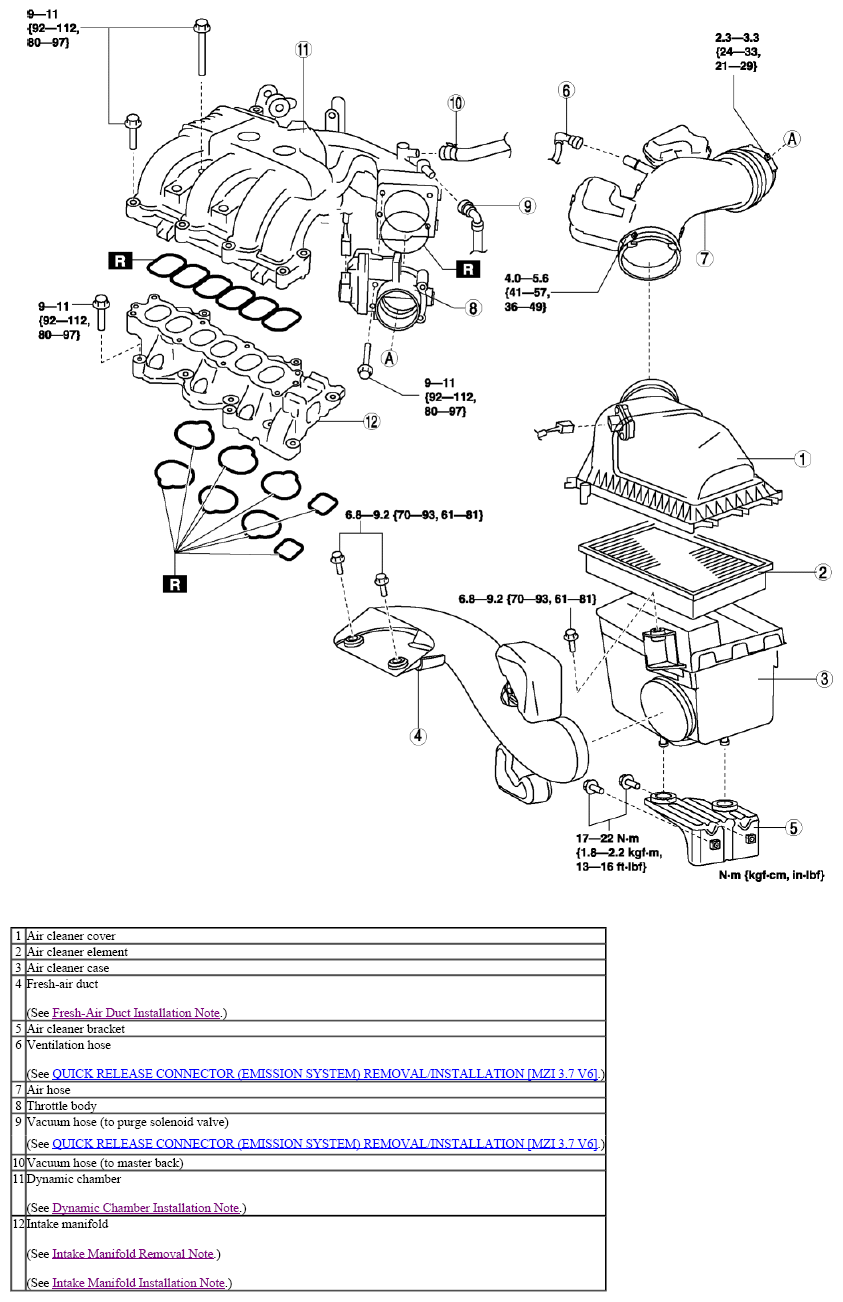

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
