Positive Crankcase Ventilation (PCV) Fitting Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
- Set the power steering fluid tank out of the way. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [MZI 3.7 V6] .)

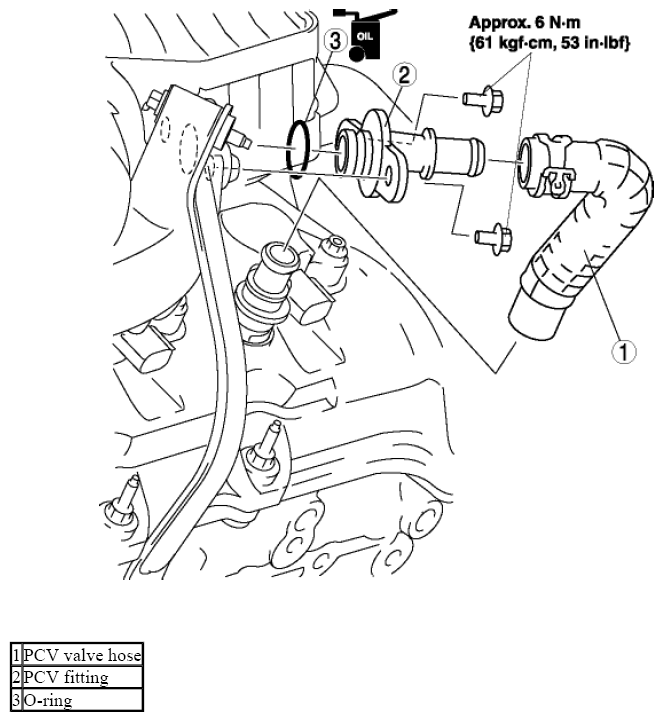

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
