Knee Bolster Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower panel. See LOWER PANEL REMOVAL/INSTALLATION .
Remove the bolt.

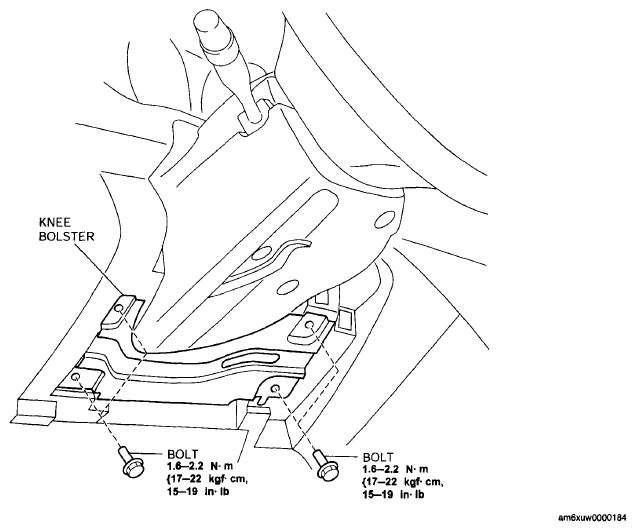

Fig 1: Lnee Bolster With Mounting Bolts Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the knee bolster.
Install in the reverse order of removal.
