Windshield Washer Motor Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front mudguard (RH). See FRONT MUDGUARD REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.

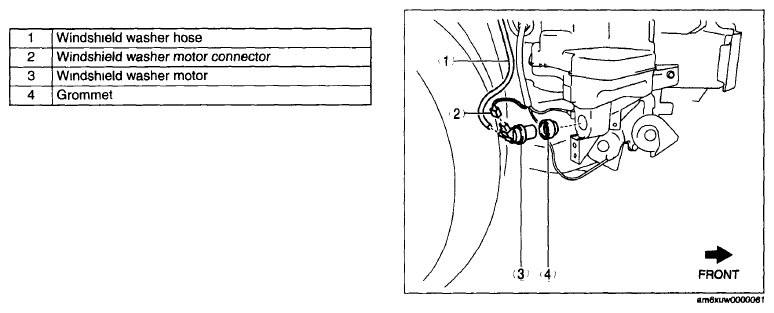

    Fig 1: Identifying Windshield Washer Motor, Windshield Washer Motor Connector And Windshield Washer Hose
    G06199541Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
