Rear Trailing Link Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

Remove the rear ABS wheel-speed sensor, and disconnect the rear ABS wheel-speed sensor harness from the rear trailing link. See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .
Remove the floor under cover No. 1 (LH) and/or floor under cover No. 2 (RH). See FLOOR UNDER COVER REMOVAL/INSTALLATION .
Jack up the vehicle to the unloaded condition, and support the trailing link using a jack.

Fig 1: Supporting Trailing Link Using Jack
Courtesy of MAZDA MOTORS CORP.
Remove the trailing link.

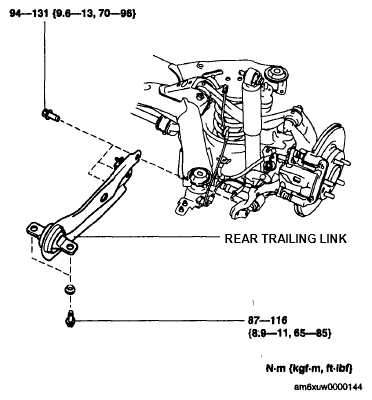

Fig 2: Trailing Link With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Support the rear axle with unloaded condition using a jack.

Fig 3: Supporting Rear Axle With Unloaded Condition Using Jack
Courtesy of MAZDA MOTORS CORP.
Temporarily install the rear trailing link knuckle side.

Fig 4: Locating Rear Trailing Link Bolts
Courtesy of MAZDA MOTORS CORP.
Install the rear trailing link front side.
Tighten the bolts installing the rear trailing link as the specified torque.
Inspect the rear wheel alignment. See REAR WHEEL ALIGNMENT .

Fig 5: Identifying Rear Trailing Link Bolts
Courtesy of MAZDA MOTORS CORP.
