Floor Under Cover Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts, cap nuts and fasteners.

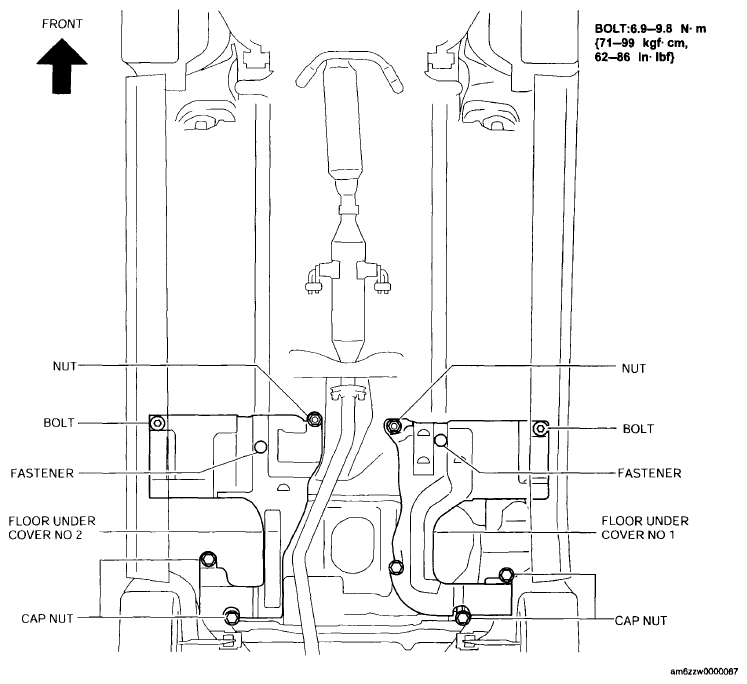

    Fig 1: Floor Under Cover Bolt And Nuts With Torque Specifications
    G06199438Courtesy of MAZDA MOTORS CORP.
  2. Remove the floor under cover and remove it while detaching the tabs.
    CAUTION:
    • Be careful not to damage the floor under cover during removal.
  3. Install in the reverse order of removal.
