Rear Seat Cushion Trim Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
  2. Remove rings C, then remove the rear seat cushion trim from the rear seat cushion pad.

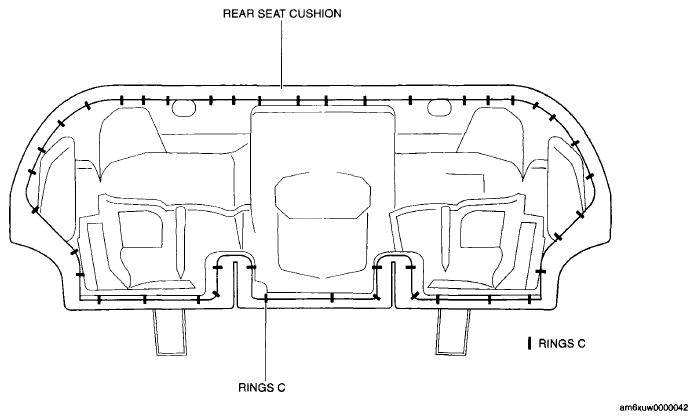

    Fig 1: Identifying Rings C On Rear Seat Cushion
    G06200837Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
