Rear Seat Back Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. See REAR SEAT CUSHION REMOVAL/INSTALLATION .
  2. Fold the rear seat back.
  3. Remove the bolts.

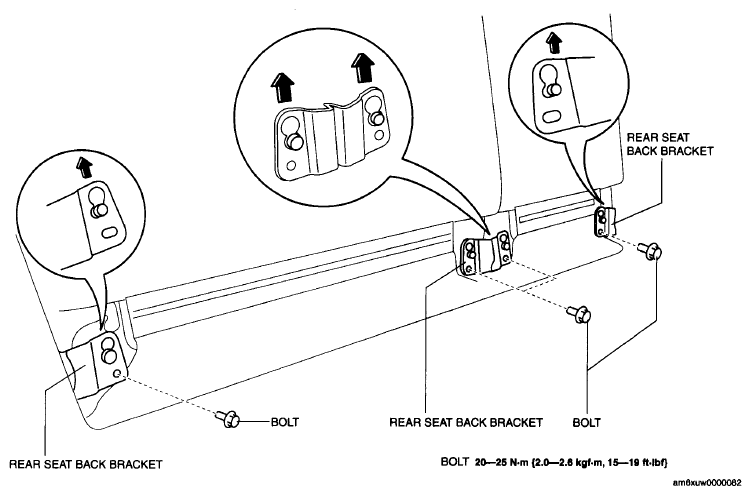

    Fig 1: Pulling Rear Seat Back Bracket
    G06200828Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear seat back bracket from the rear seat back by pulling the rear seat back bracket in the direction of the arrow shown in the figure.
  5. Install in the reverse order of removal.
