Front Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front bumper. See FRONT BUMPER REMOVAL/INSTALLATION .
    2. Front combination light. See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .
    3. Aerodynamic under cover No. 1. See AERODYNAMIC UNDER COVER NO. 1 REMOVAL/INSTALLATION .
    4. Front energy-absorbing form. See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION .
    5. Seal plate. See SEAL PLATE REMOVAL/INSTALLATION .
    6. Ambient temperature sensor. See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] . See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .
  3. Remove the bolts A and bolts B.

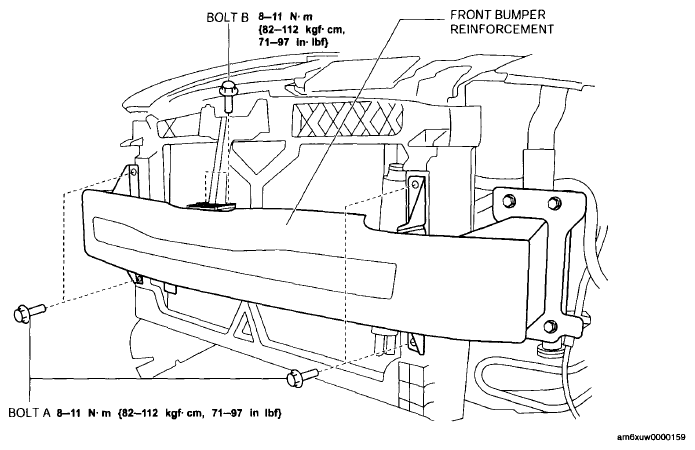

    Fig 1: Front Bumper Reinforcement With Mounting Bolts Torque Specifications
    G06200689Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut C and bolt D.

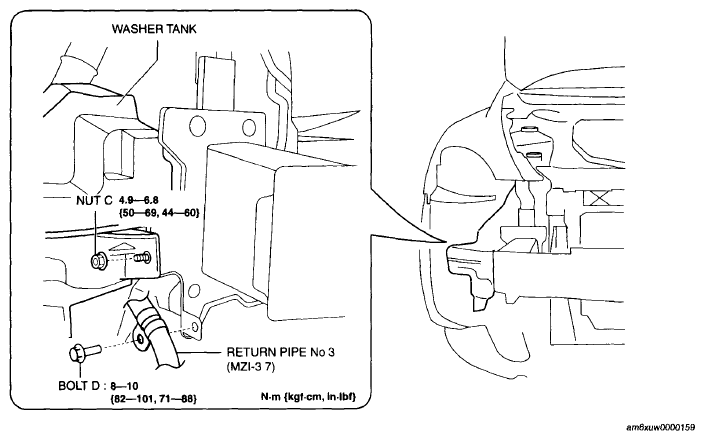

    Fig 2: Identifying Return Pipe No. 3 With Bolt D And Nut C
    G06200690Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts E.

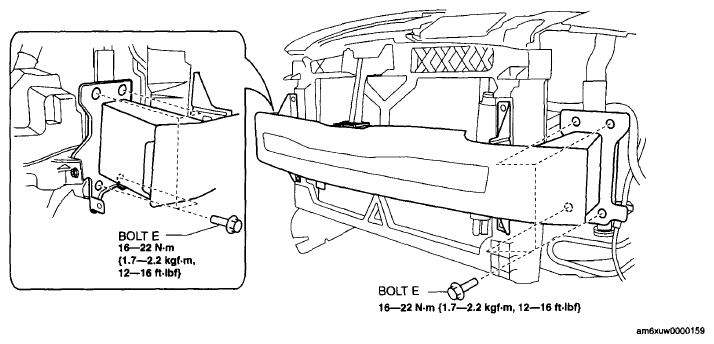

    Fig 3: Bolt E With Torque Specifications
    G06200691Courtesy of MAZDA MOTORS CORP.
  6. Remove the front bumper reinforcement.
  7. Install in the reverse order of removal.
