Aerodynamic Under Cover No. 1 Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts A and clip B.

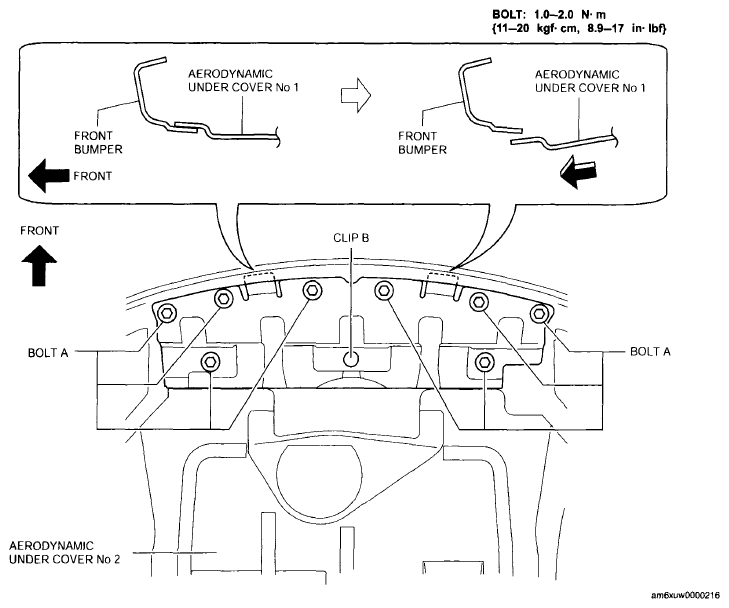

    Fig 1: Identifying Aerodynamic Under Cover No. 1
    G06199436Courtesy of MAZDA MOTORS CORP.
  2. Set aside the aerodynamic under cover No. 1 from the front bumper, then remove the aerodynamic under cover No. 1 in the direction of the arrow shown in the figure.
    CAUTION:
    • Be careful not to damage the aerodynamic under cover No. 1 during removal.
  3. Install in the reverse order of removal.
