Energy-Absorbing Form Removal/Installation: Rear

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear splash shield. See SPLASH SHIELD REMOVAL/INSTALLATION .
  2. Remove the rear combination light. See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .
  3. Remove the rear bumper. See REAR BUMPER REMOVAL/INSTALLATION .
  4. Remove the fastener.

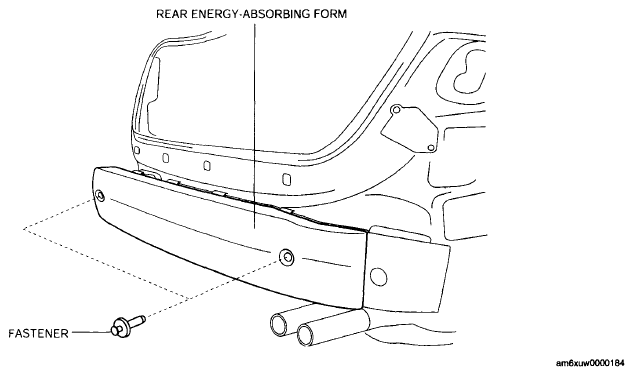

    Fig 1: Identifying Rear Energy-Absorbing Form And Fastener
    G06200676Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear energy-absorbing form.
  6. Install in the reverse order of removal.
