Splash Shield Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the screws and cap nut then remove the splash shield in the direction of the arrow shown in the figure.

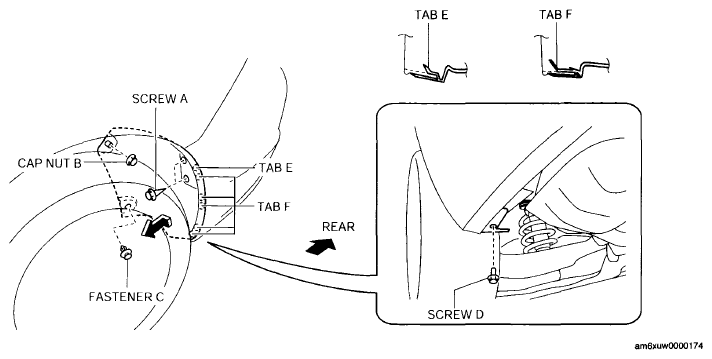

Fig 1: Identifying Splash Shield
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
