Oil Cooler Removal/Installation [Aw6A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Drain the ATF into a container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL] .)
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7] .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.
  6. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [MZI-3.7] .)
  7. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL] .)
  8. Connect the negative battery cable.
  9. Inspect for oil leakage from the oil pipes and oil hoses.
  10. Inspect for coolant from the hoses.
  11. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [MZI-3.7] .)
  12. Inspect the ATF level and condition. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [AW6A-EL] .)
  13. Perform the line pressure test. (See MECHANICAL SYSTEM TEST [AW6A-EL] .)

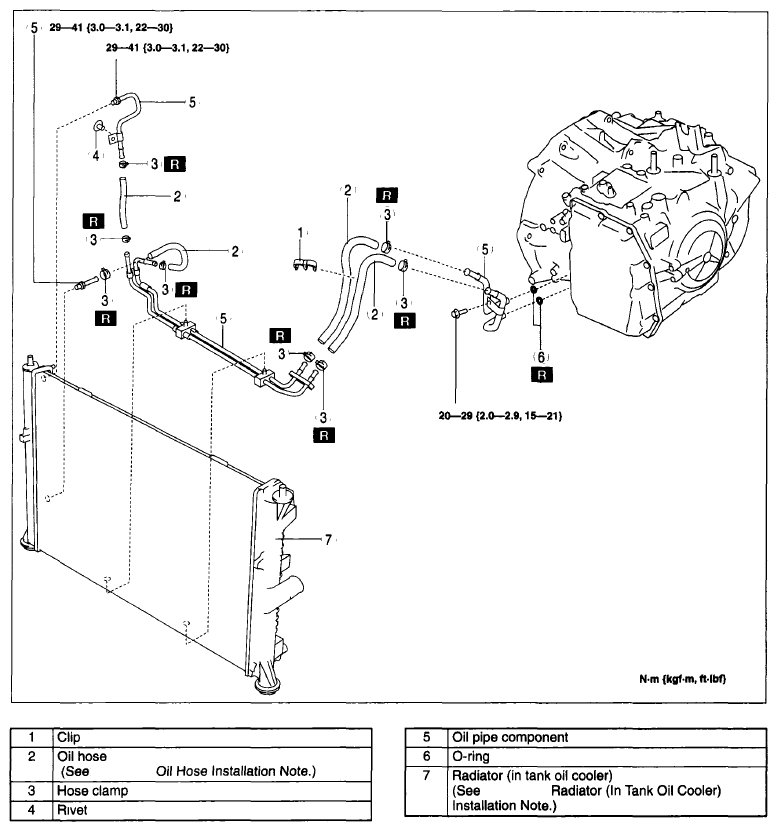

Fig 1: Oil Cooler Replacement Components With Torque Specifications
G06200187Courtesy of MAZDA MOTORS CORP.
