Rear Mudguard Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the splash shield. See. SPLASH SHIELD REMOVAL/INSTALLATION .
Remove the cap nut A, B and fastener C.

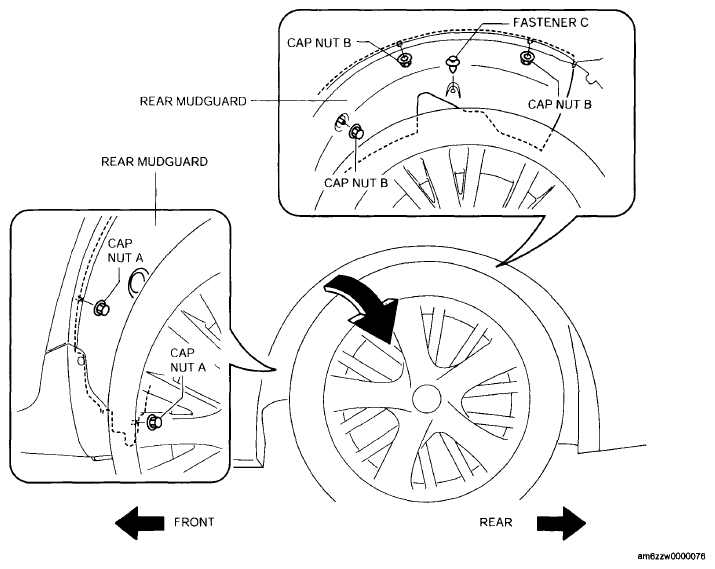

Fig 1: Identifying Cap Nut A, B And Fastener C
Courtesy of MAZDA MOTORS CORP.
Install in the reverse of removal.
