Rear BELTLINE Molding Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully lower the rear door glass.
  2. Remove the rear door trim. See. REAR DOOR TRIM REMOVAL/INSTALLATION .
  3. Rotate the rear beltline molding in the direction of the arrow (1) shown in the figure and remove it while detaching tabs B.

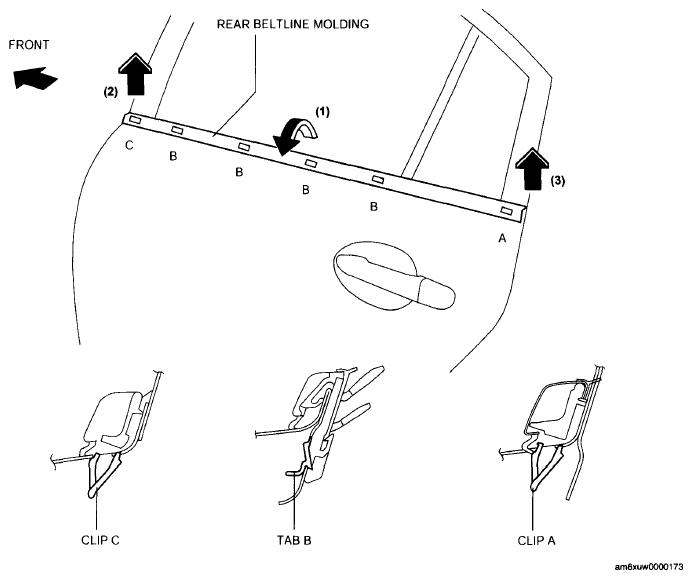

    Fig 1: Illustrating Removal Of Rear Beltline Molding
    G06199428Courtesy of MAZDA MOTORS CORP.
  4. Remove clip C using a fastener remover and pull up the rear beltline molding in the direction of the arrow (2) shown in the figure.
  5. Remove clip A using a fastener remover and pull up the rear beltline molding in the direction of the arrow (3) shown in the figure.
  6. Install in the reverse order of removal.
