Transaxle Range (Tr) Switch Removal/Installation [FS5A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

Select the selector lever to N position.
Disconnect the negative battery cable.
Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L5] .)
Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

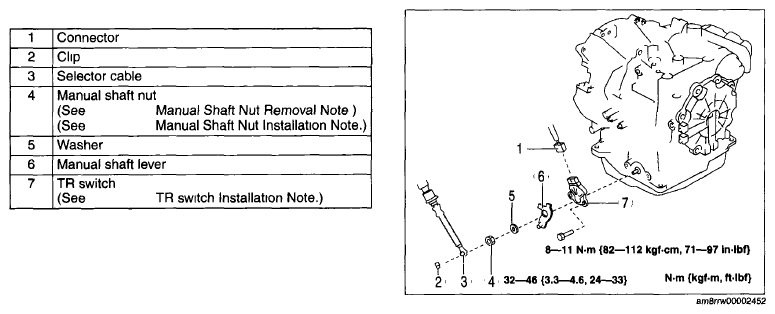

Fig 1: Selector Cable Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
Inspect the TR switch (See TRANSAXLE RANGE (TR) SWITCH INSPECTION [FS5A-EL] .)
