Primary Control Valve Body

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the primary control valve body
    1. Disconnect the negative battery cable.
    2. Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
    3. Remove the front crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [L5] .)
    4. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
    5. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] .)
    6. Remove the oil pan. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FS5A-EL] .)
    7. Remove the primary control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION [FS5A-EL] .)
  2. Remove in the order indicated in the table.

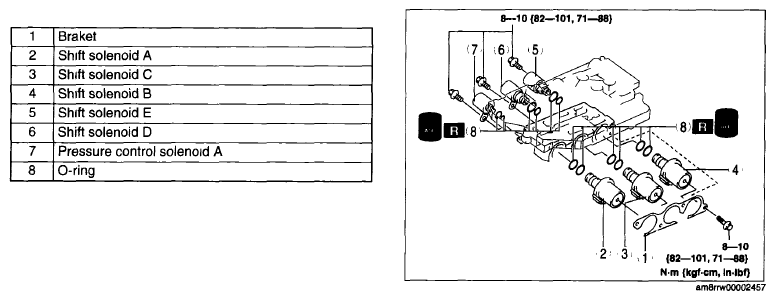

    Fig 1: Solenoid Valve Replacement Components With Torque Specifications
    G06205900Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] .)
  5. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST [FS5A-EL] .)
  6. Perform the "Road Test". (See ROAD TEST [FS5A-EL] .)
