Oil Pressure Switch Removal/Installation [FS5A-El]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

A hot transaxle and ATF can cause severe burns. Turn off the engine and wait until they are cool.

Disconnect the negative battery cable.
Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

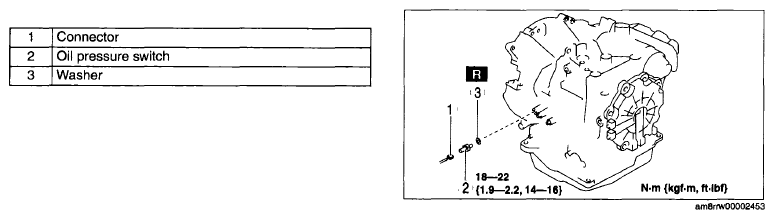

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
