Oil Cooler Removal/Installation [FS5A-El]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable
  2. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L5] .)
  3. Remove the aerodynamic under cover NO 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  4. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] .)
  5. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [L5] .)
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal
  8. Add the engine coolant. (See ENGINE COOLANT REPLACEMENT [L5] .)
  9. Add the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FS5A-EL] .)
  10. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST [FS5A-EL] .)

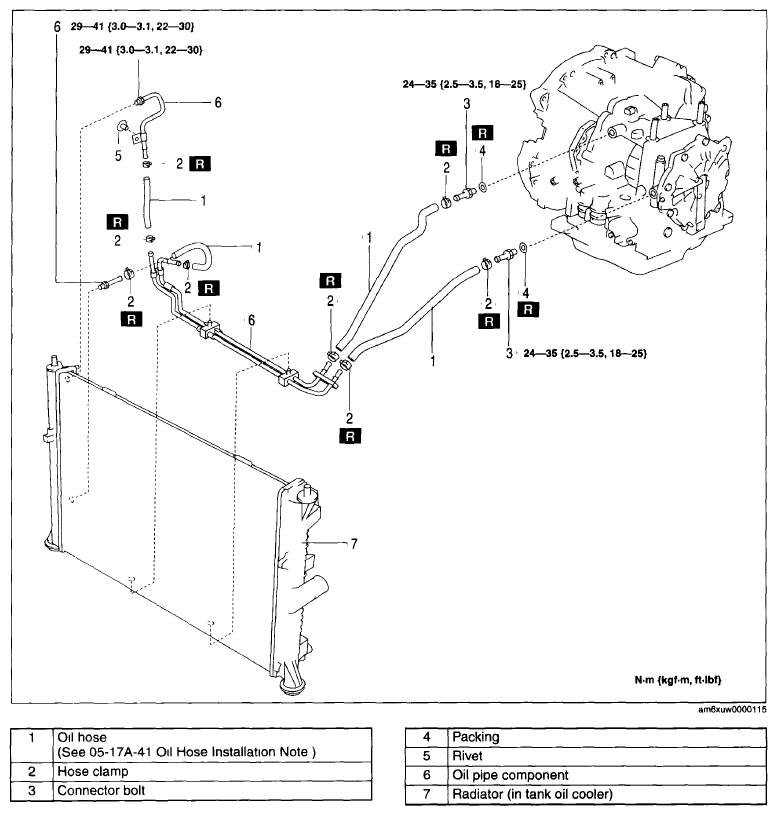

Fig 1: Oil Cooler Replacement Components - Type A With Torque Specifications
G06205928Courtesy of MAZDA MOTORS CORP.

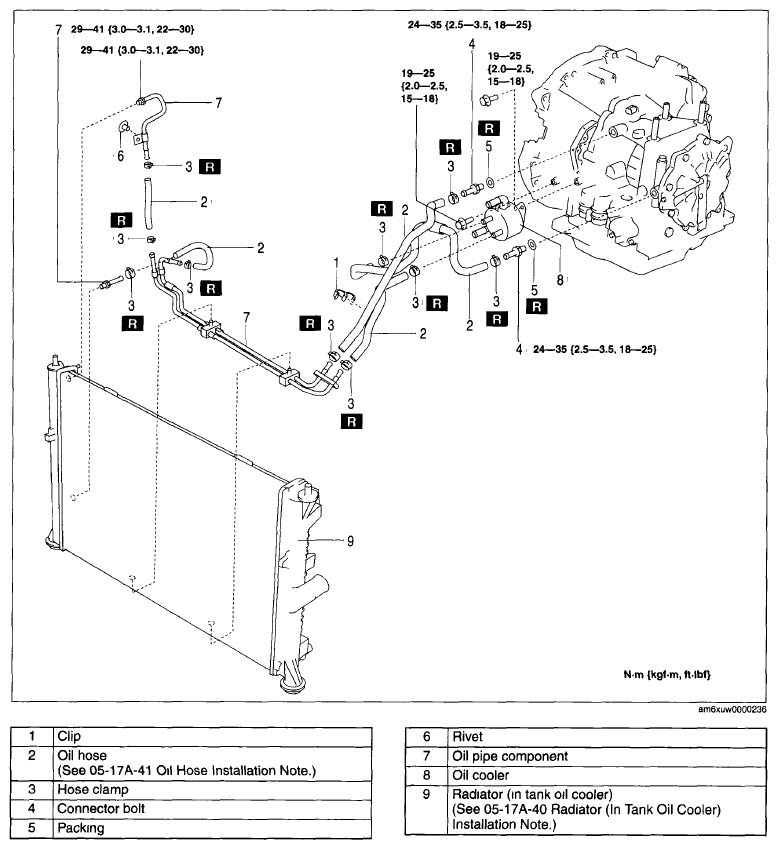

Fig 2: Oil Cooler Replacement Components - Type B With Torque Specifications
G06205929Courtesy of MAZDA MOTORS CORP.
