Electronic Fuel Pump Relay Removal/Installation [MZI-3.7]
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION [MZI-3.7] .
- Disconnect the negative battery cable. See BATTERY REMOVAL/INSTALLATION [MZI-3.7] .
- Remove the rear side seat back. See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .

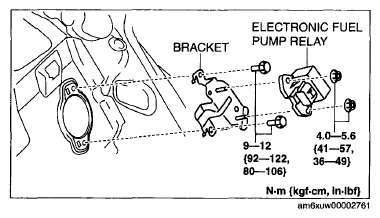

- Disconnect the electronic fuel pump relay connector.
- Remove the electronic fuel pump relay.
- Install in the reverse order of removal.
- Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION [MZI-3.7] .
