Clutch Release Cylinder Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.

NOTE:

If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.

Remove the aerodynamic under cover No. 2. See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
Remove in the order indicated in the table.
Install in the reverse order of removal.

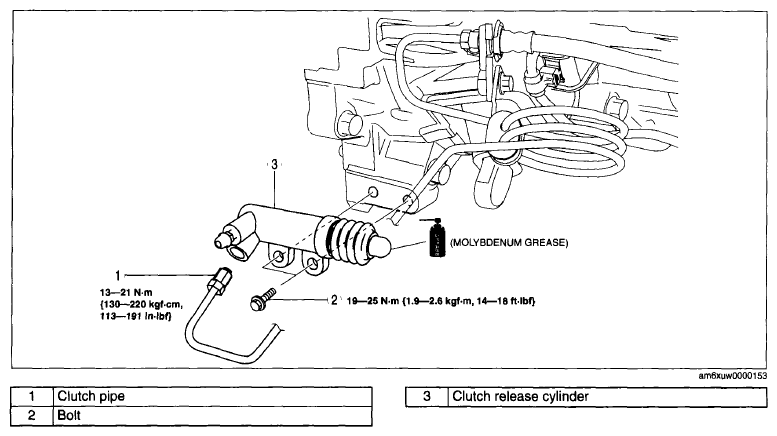

Fig 1: Clutch Release Cylinder Replacement Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
