Clutch Pedal Removal/Installation: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery and battery tray.
- Remove the cowl panel. See COWL PANEL REMOVAL/INSTALLATION .

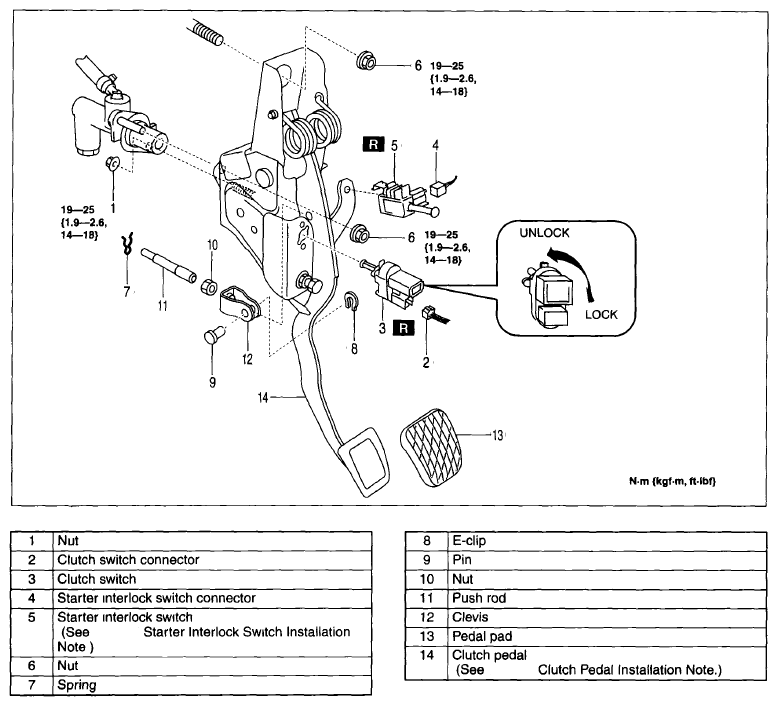

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, inspect the clutch pedal. See CLUTCH PEDAL INSPECTION/ADJUSTMENT .
