Clutch Master Cylinder Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
NOTE:
- If clutch system-related hydraulic parts are removed, supply brake fluid, bleed air, and inspect for fluid leakage after the installation.
- Remove the battery and battery tray
- Remove the cowl panel. See COWL PANEL REMOVAL/INSTALLATION .
- Remove the PCM and the PCM bracket. See PCM REMOVAL/INSTALLATION [L5] .

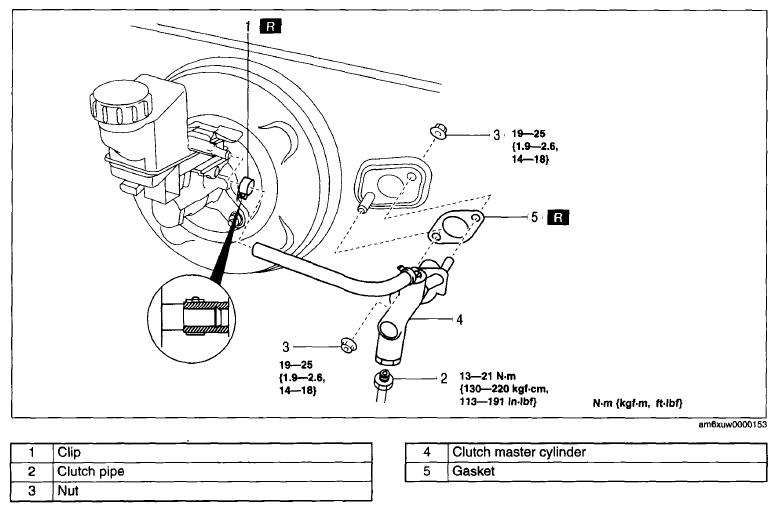

- Remove in the order indicated in the table.
- Plug the clutch pipe after removing it to avoid leakage.
- Install in the reverse order of removal.
