Rear Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION .
Remove in the order indicated in the table.
With Bose®

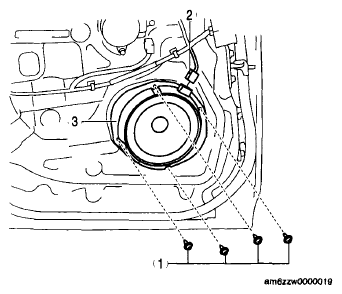

Fig 1: Identifying Rear Door Speaker And Bolts (With Bose)
Courtesy of MAZDA MOTORS CORP.

Without Bose®

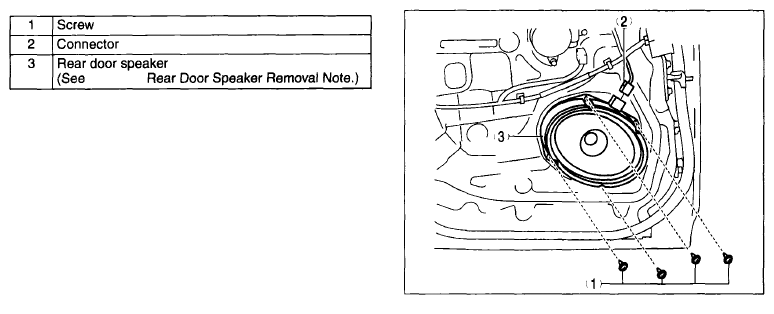

Fig 2: Identifying Rear Door Speaker And Bolts (Without Bose)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
