Information Display Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the center panel upper. See CENTER PANEL UPPER REMOVAL/INSTALLATION .
  3. Remove the screws, then remove the information display from the center panel upper.
  4. Install in the reverse order of removal.

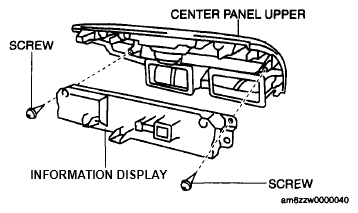

    Fig 1: Identifying Center Panel Upper And Screw
    G06201221Courtesy of MAZDA MOTORS CORP.
