Rear Seat Cushion Removal/Installation

  1. Detach the hooks from the grommets by pulling the rear seat cushion in the direction of the arrow shown in the figure.

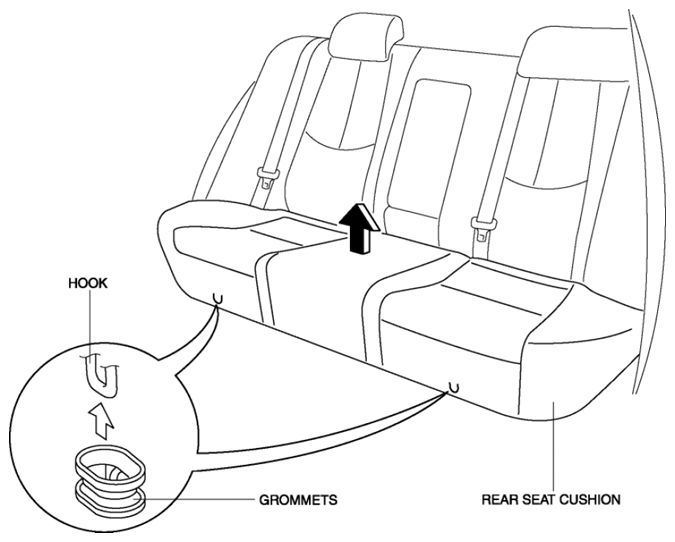

    Fig 1: Identifying Rear Seat Cushion Pulling Direction, Hooks And Grommets
    G08144445
  2. From the backside of the seat, detach the hook in the direction of arrow (1) shown in the figure, then remove the rear seat cushion by pulling it in the direction of arrow (2).

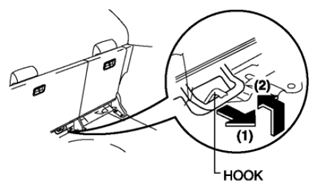

    Fig 2: Identifying Hook Detach Direction And Rear Seat Cushion Pulling Direction
    G08144446
  3. Install in the reverse order of removal.
