Clutch Pedal Position Sensor / Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 2.5]

1. Verify that the CPP switch is installed properly.

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable. Removal and Replacement

4. Disconnect the CPP switch connector.

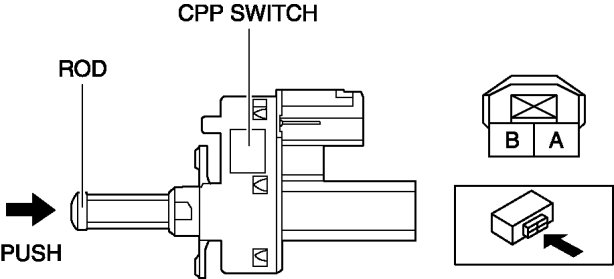

5. Inspect for continuity between CPP switch terminals A and B.






- If not as specified, replace the CPP switch. Service and Repair

Specification
