Windshield Washer Motor: Testing and Inspection

WINDSHIELD WASHER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the windshield washer tank. Service and Repair

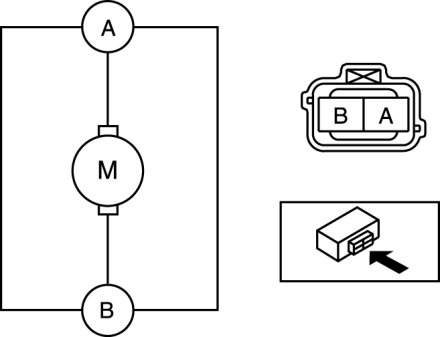

3. Connect battery positive voltage to windshield washer motor terminal A and terminal B to ground.






4. Verify that the windshield washer motor operates normally.

- If there is any malfunction, replace the windshield washer motor.
