Windshield Washer Motor: Service and Repair

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the windshield washer tank. Service and Repair

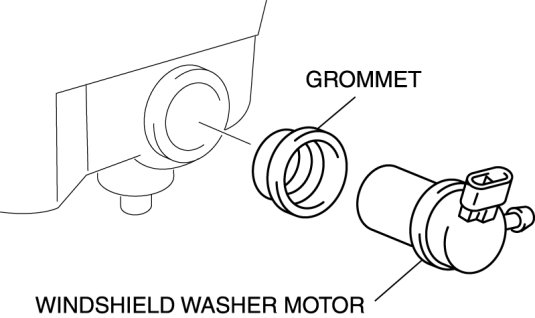

3. Remove the windshield washer motor, then remove the grommet.






4. Install in the reverse order of removal.
