Rear Door Limiter: Service and Repair

REAR DOOR CHECKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Inner garnish (See Inner Garnish Removal/Installation)

b. Rear door trim (See Rear Door Trim Removal/Installation)

c. Rear door speaker (See Rear Door Speaker Removal/Installation)

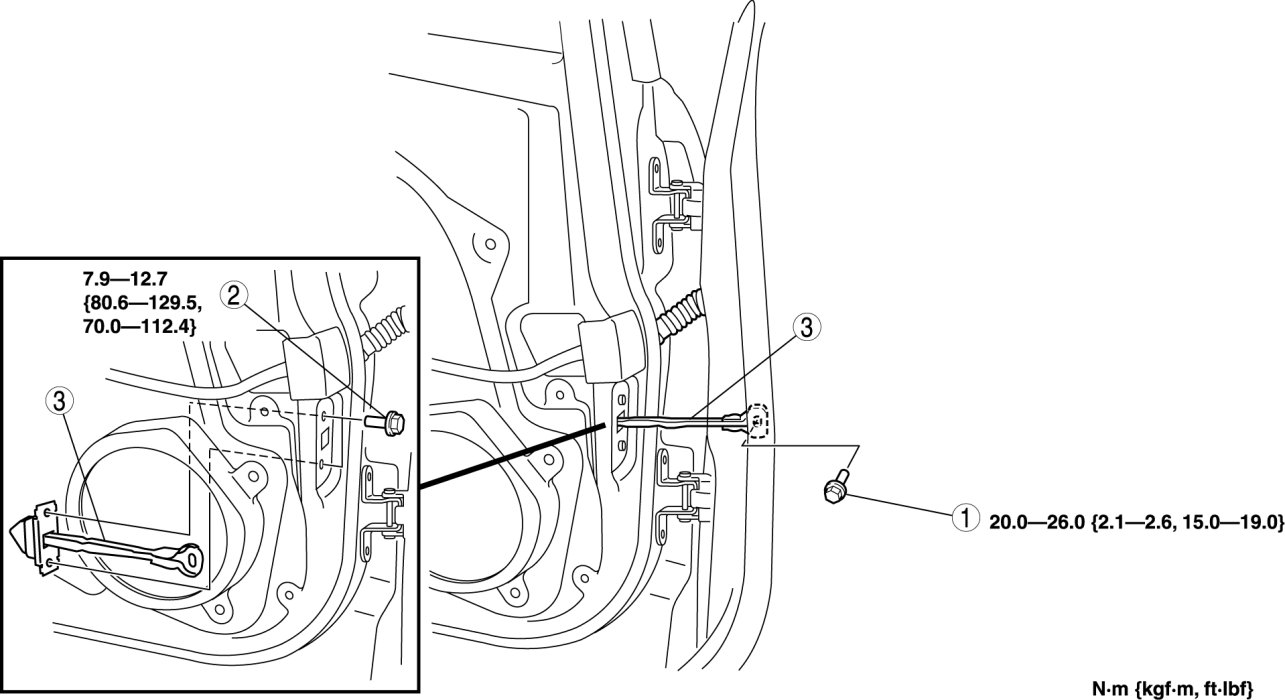

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

5. Adjust the front door. Adjustments
