Climate Control Unit Removal/Installation [Manual Air Conditioner]

1. Disconnect the negative battery cable.
2. Remove the following parts:
   1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
   2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
   3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX .)
   4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
3. Remove in the order indicated in the table.
   PARTS DESCRIPTION CHART



   1	Screw
   2	Climate control unit connector
   3	Climate control unit

4. Install in the reverse order of removal.

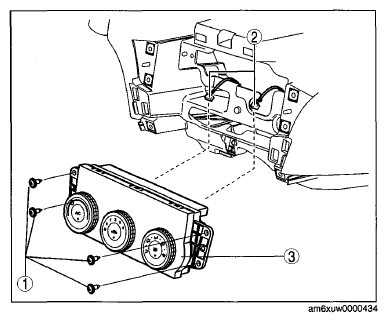

Fig 1: Climate Control Unit, Screw And Connector

Courtesy of MAZDA MOTORS CORP.
