Lubrication System Location Index
WARNING: This page is about a different variant/trim than selected.

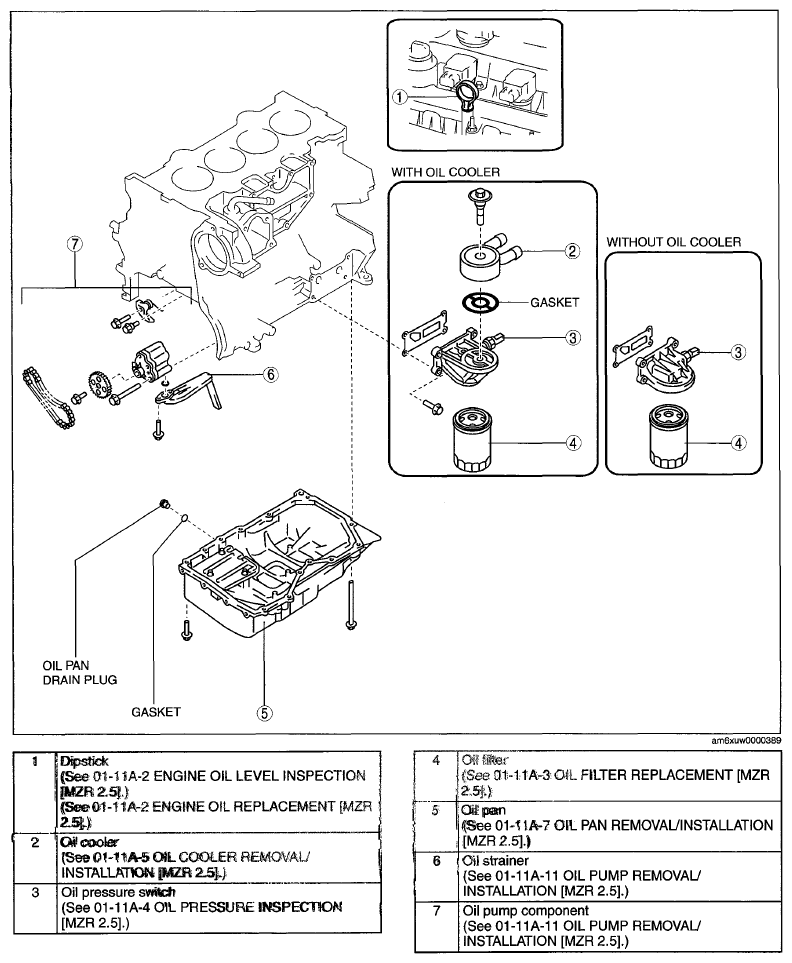

LUBRICATION SYSTEM COMPONENTS REFERENCE CHART
| 1 | Dipstick (See
ENGINE OIL LEVEL INSPECTION .) (See ENGINE OIL REPLACEMENT .) |
| 2 | Oil cooler (See OIL COOLER REMOVAL/INSTALLATION .) |
| 3 | Oil pressure switch (See OIL PRESSURE INSPECTION .) |
| 4 | Oil filter (See OIL FILTER REPLACEMENT .) |
| 5 | Oil pan (See OIL PAN REMOVAL/INSTALLATION .) |
| 6 | Oil strainer (See OIL PUMP REMOVAL/INSTALLATION .) |
| 7 | Oil pump component (See OIL PUMP REMOVAL/INSTALLATION .) |
