Drive Belt Inspection

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.
  1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.
    • If it exceeds the limit, replace the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)

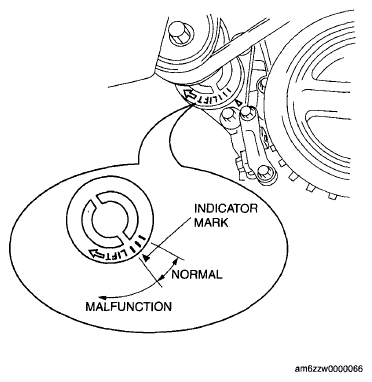

      Fig 1: Inspecting Drive Belt Auto Tensioner
      G06199762Courtesy of MAZDA MOTORS CORP.
