Starting System Location Index

WARNING: This page is about a different variant/trim than selected.

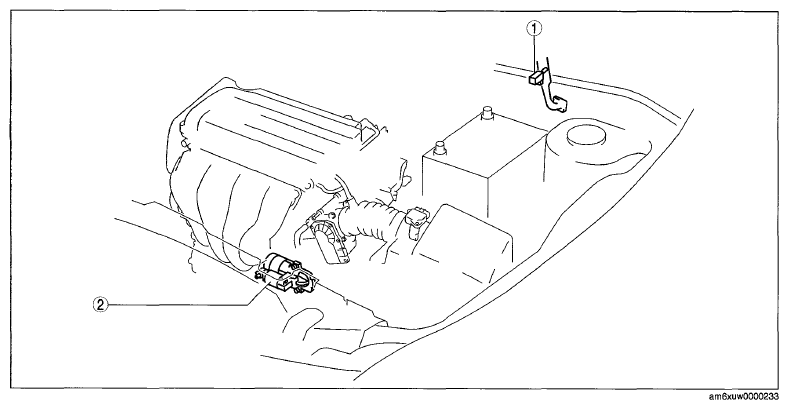

Fig 1: Starter And Starter Interlock Switch (MTX)

Courtesy of MAZDA MOTORS CORP.

STARTING SYSTEM LOCATION INDEX

1	Starter interlock switch (MTX) (See STARTER INTERLOCK SWITCH INSPECTION .)
2	Starter (See STARTER REMOVAL/INSTALLATION .) (See STARTER INSPECTION .) (See STARTER DISASSEMBLY/ASSEMBLY .)
