Primary Control Valve Body

WARNING: This page is about a different variant/trim than selected.
  1. Remove the primary control valve body.
    1. Disconnect the negative battery cable.
    2. Remove the aerodynamic under cover NO. 2. (See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
    3. Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents.
    4. Drain the ATF into a separate suitable container. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
    5. Remove the front crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [MZR 2.5] .)
    6. Remove the oil pan. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
    7. Remove the primary control valve body. (See CONTROL VALVE BODY REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
  5. Perform the "Mechanical System Test". (See MECHANICAL SYSTEM TEST .)
  6. Perform the "Road Test". (See ROAD TEST .)
    PARTS DESCRIPTION CHART

    1 Braket
    2 Shift solenoid A
    3 Shift solenoid C
    4 Shift solenoid B
    5 Shift solenoid E
    6 Shift solenoid D
    7 Pressure control solenoid A
    8 O-ring

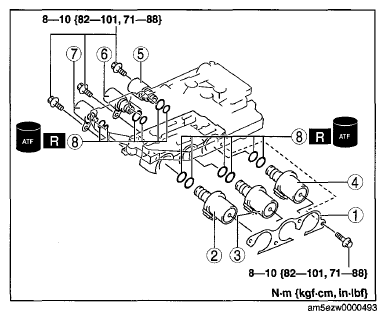

    Fig 1: Solenoid Valve Components With Torque Specification (FS5A-EL)
    G07625898Courtesy of MAZDA MOTORS CORP.
