Clutch Master Cylinder Removal/Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- If clutch fluid gets on a painted surface, it will cause the paint to peel. Be careful not to spill clutch fluid on the painted surfaces. Wash off any spilled clutch fluid with water immediately.
NOTE:
- If clutch system-related hydraulic parts are removed, supply clutch fluid, bleed air, and inspect for fluid leakage after the installation.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
- Remove the PCM and the PCM bracket. (See PCM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Plug the clutch pipe after removing it to avoid leakage.
- Install in the reverse order of removal.

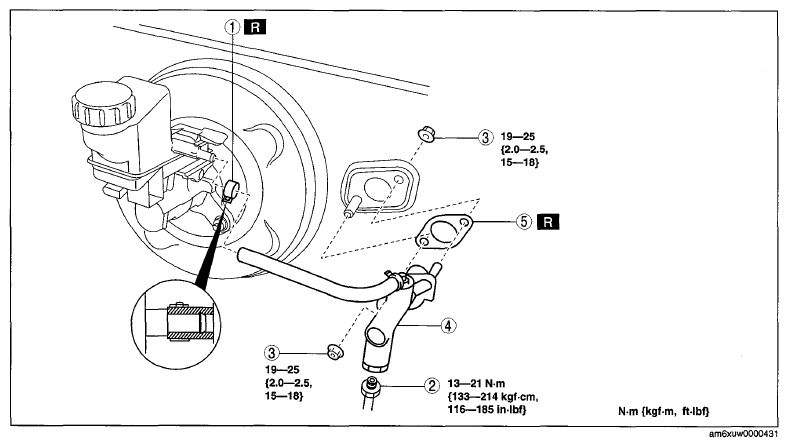

PARTS DESCRIPTION CHART
| 1 | Clip |
| 2 | Clutch pipe |
| 3 | Nut |
| 4 | Clutch master cylinder |
| 5 | Gasket |
